Automatic rotary pleating amchine
Automatic filter rotary pleating machine, full automatic air filter paper rotary pleating machine:
1. Full automatic easy and fast to change roller.
2. PLC +touch screen control manual input or choice need data on cabinet.
3. Filter paper pleating machine production line mesh tube filling machine optional according you need.
|
1 |
Model |
ZZ-6/1000 |
ZZ-6/800 |
ZZ-6/700 |
|
2 |
Pleat range |
22-72mm |
22-72mm |
22-72mm |
|
3 |
Effect width |
100-1000mm |
100-800mm |
100-700mm |
|
4 |
Speed |
120m/min |
120m/min |
120m/min |
|
5 |
Roller size |
Custom as
request |
Custom as
request |
Custom as
request |
|
6 |
Temperature
control |
0-190 ℃ |
0-190 ℃ |
0-190 ℃ |
|
7 |
Air pressure |
0.6Mpa |
0.6Mpa |
0.6Mpa |
|
8 |
Total power |
18kw |
18kw |
18kw |
|
9 |
Voltage |
380v,50hz,3phase |
380v,50hz,3phase |
380v,50hz,3phase |
|
10 |
Weight |
2450kgs |
2450kgs |
2320kgs |
|
11 |
Dimensions |
2850*1450*1750 2480*1450*2050 mm |
2850*1450*1750 2480*1450*2050 mm |
2880*1350*1750 2480*1350*2050mm |
Filter paper pleating machine
Mesh tube filling machine

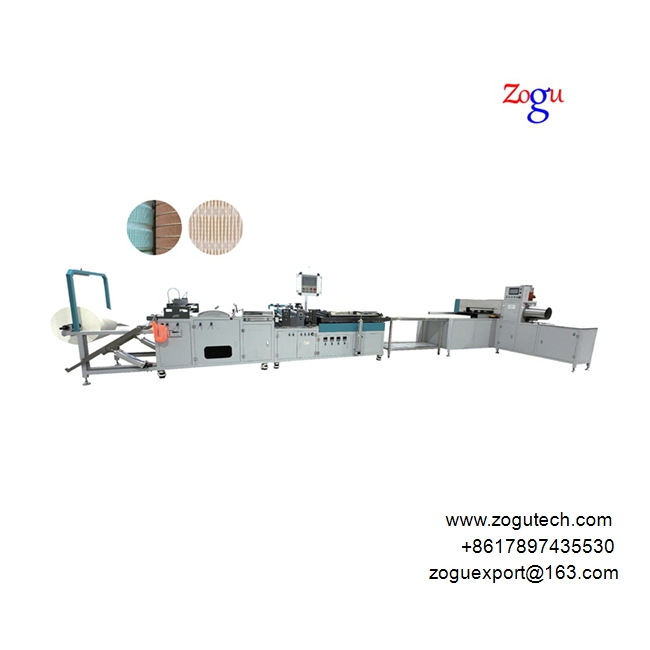

Automatic rotary pleating machine production line, automatic filter paper pleating machine and mesh tube filling machine production line
