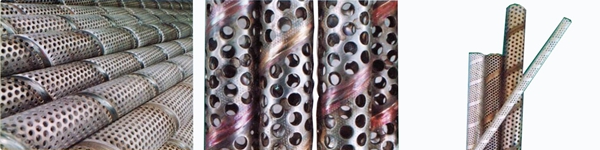

Spiral pipe welding machine, spiral pipe welded machine: use for make hydraulic filter support frame, inner or outer filter core, oil filter net work.
Spiral pipe welding machine, perforated spiral welding pipe machine technical parameters:
|
strip thickness |
1.0-2.5mm |
0.6-1mm |
|
strip width |
30-130mm |
70-130mm |
|
diameter range |
16-160mm |
40-240mm |
|
motor power |
3.75kw |
|
|
production speed |
0-4m/min |
|
|
dimension |
1500*1200*1250mm |
|
|
weight |
1200kg |
|
|
mould |
saw blade cutting |
Plasma tracking synchronous cutting |
|
welding |
spiral argon arc welding |
|
|
current |
300A |
|
|
applicable material |
stainless steel, carbon steel |
|
|
applicable product |
various high pressure within the filter support frame, oil complex sand |
|
