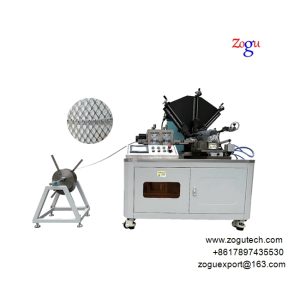

Air filter spiral tube rolling machine, Large air filter center spiral tube rolling machine: used to make large air filter center or outer use spiral mesh tube.

Material: galvanized steel expanded mesh coil and various deep drawing carbon steel mesh coil

Air filter spiral tube rolling machinelarge filter mesh core rolling machine:

thickness	0.5-0.8mm
strip width	109mm
diameter range	80-400
motor power	2.6kw
production speed	2.6m/min
dimension	140011001400mm
weight	1000kg
mould	adjustable steel mold diameter range
cutting mode	pneumatic circular blade tracking cut off,continuous non-stop
seams way	inside and outside the flat outer seams
applicable material	galvanized steel mesh coil and various deep drawing carbon steel mesh coil
applicable product	efficient production of dust filter, air filter and a variety of both interior and exterior filter network, support net work.

The finish mesh tube widly use on truck air filters, dust filters, air clean filters etc.

Air filter spiral tube rolling machine- automatic change diameter and angle

Item	109-II	73	49
Mesh width	109mm	73mm	49mm
Diameter	80-450mm	55-200mm	49-200mm
Thickness	0.5-0.8mm	0.4-0.8mm	0.4-0.8mm
Weight	900kgs	900kgs	900kgs
Applicable material	Fingerprint resistant mesh coil, galvanized mesh coil, ss mesh coil

Air filter spiral tube rolling machine, expanded mesh tube rolling machine - Mesh coil making machine
