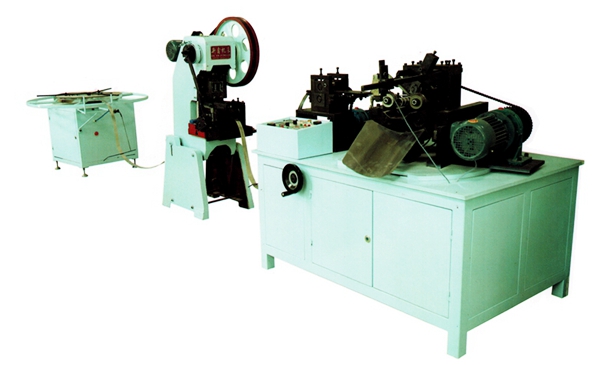

Wire wound filter skelet rolling machine: the machine use for make water filter, wire wound filter inner support mesh tube.
Application materaial: stainless steel
Wire wound filter skeleton rolling machine tehnical parameters:
|
strip thickness |
0.25-0.3mm |
|
strip width |
38mm |
|
diameter range |
30-80mm |
|
motor power |
4.5kw |
|
production speed |
0-4m/min |
|
dimension |
1410*1100*1250mm |
|
weight |
1200kg |
|
cutting way |
Pneumatic circular blade tracking cut off, continuous non-stop |
|
Seams way |
Outside seams |
|
applicable material |
stainless steel |
|
Applicable product |

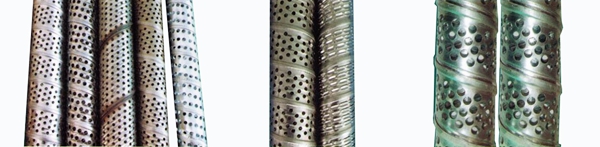

Various water filter, wire wound filter inside the supporting network |
