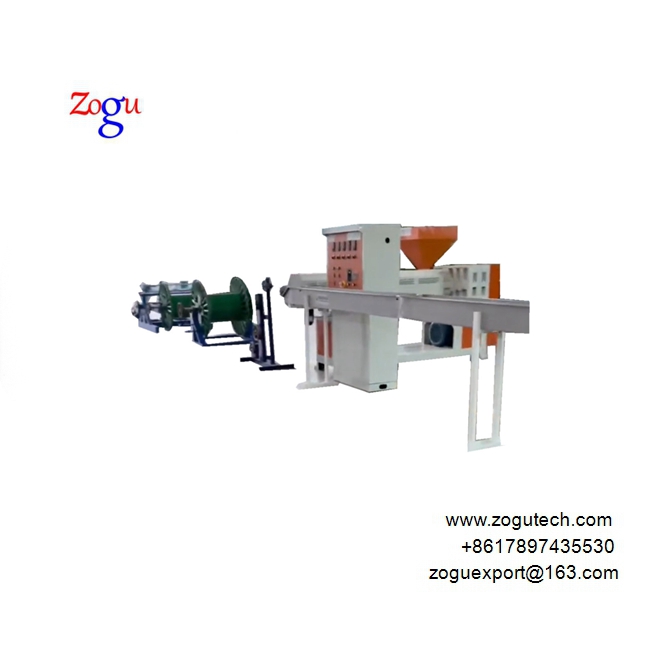

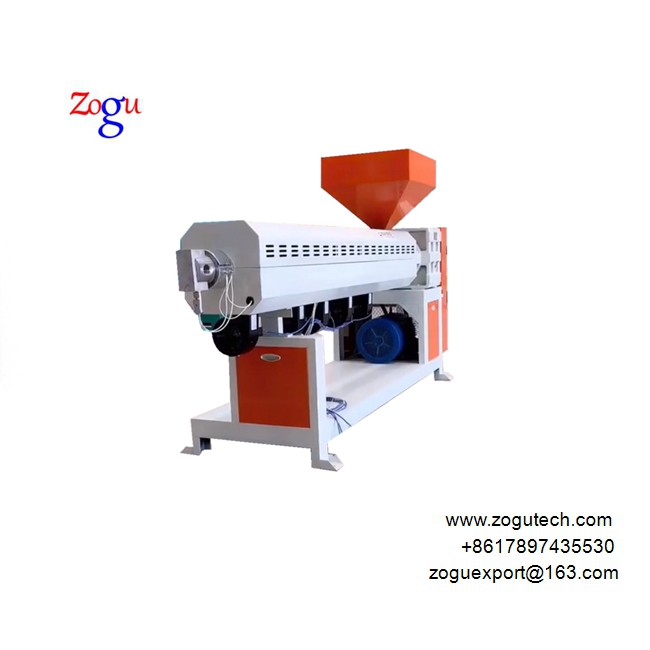

Wire PVC coating machine, PVC coated machine, the machine use for wrap PVC or PE cover.
Wire PVC coating machine technical parameters:
Specification | 40 | 45 | 65 | 80 | |
Screw diameter | mm | 40 | 45 | 65 | 80 |
Coating material | - | PVC / PE | PVC/ PE | PVC/PE | PVC/PE |
Wire diameter | mm | 0.8-1.2 | 0.55-2 | 1-4 | 1.5-5 |
Extrusion thickness | mm | 0.05-2 | 0. 5-2 | 0.5-2 | 0.5-2 |
Power | Kw | 6.7 | 7.5 | 15 | 30 |
Reeling | - | Cut to length | Rolling | Rolling | Rolling |
Weight | kgs | 800 | 1500 | 1800 | 2000 |
