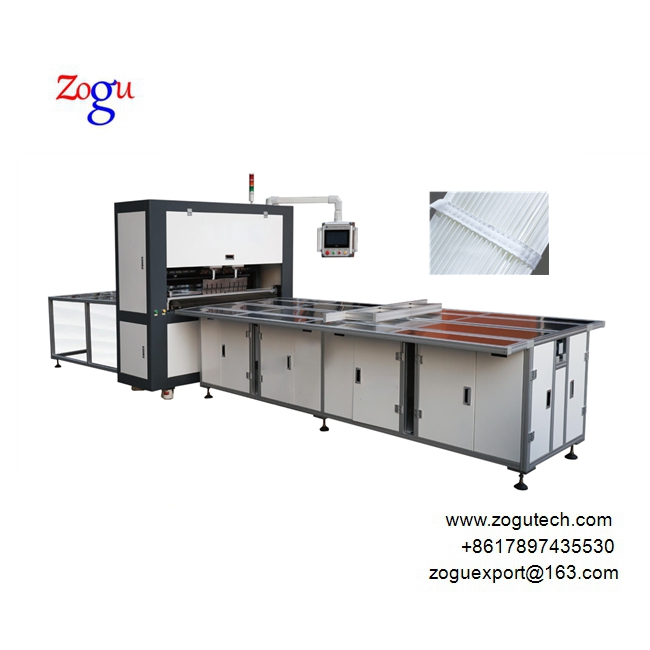

Filter cartridge strap welding machine (filter cartridge banding ultrasonic welding machine)
Model | 1000F | 1198F |
Effective welding width | 550mm | 1198mm |
Effective welding height | 16-30mm or customize | 16-50mm or customize |
Molid pleat distance | 9mm or customize | 9mm or customize |
Ultrasonic frequency | 15k 2600Wx2 | 15k 3200Wx2 |
Welding time | 0.6-1s adjutable | 0.6-1s adjutable |
Rated power | 4.5kw | 4.5kw |
Dimensions | 6500x890x1800mm | 6350x1750x1800mm |
This machine uses ultrasonic technology and is suitable for automatic welding of dust collector filter cartridge straps. The number of straps and spacing are adjustable, resulting in high welding strength and high production efficiency.

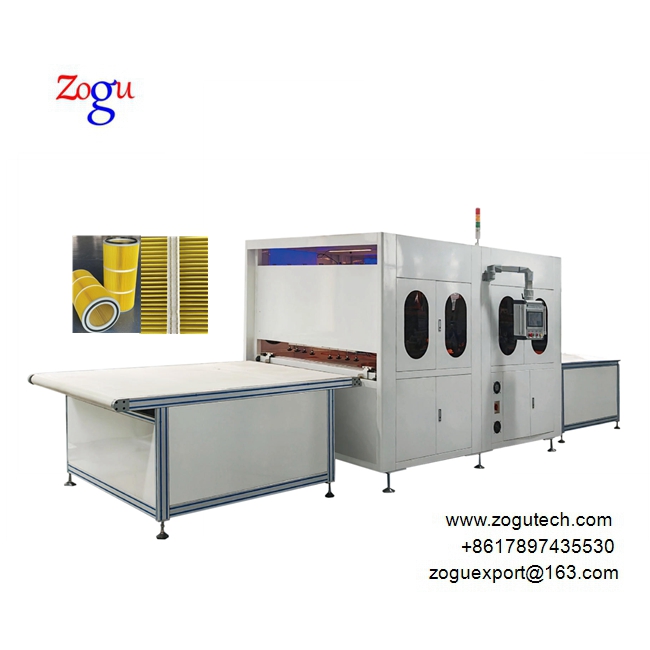

Automatic filter cartridge strapping and welding machine
Model | A1M | A1.5M |
Effective width | 430-1000mm | 1000-1500mm |
Rated power | 17.2kw | 22.8kw |
Running speed | ≤60pleats/min according the actual situation | |
Compressed air supply | 0.5-0.8Mpa | 0.5-0.8Mpa |
Air inlet diameter | 12mm | 12mm |
Ultrasonic frequency | 20Khz | 20Khz |
Effective weld penetration | 35-50mm | 35-50mm |
Tooling die pitch | 6-10mm adjustable | 6-10mm adjustable |
This machine utilizes ultrasonic technology and is suitable for automatic welding and feeding of large-diameter dust collector filter cartridges. The number of straps can be adjusted automatically. The fold spacing can be adjusted according to actual needs. It offers high welding strength and production efficiency, while reducing labor costs.
