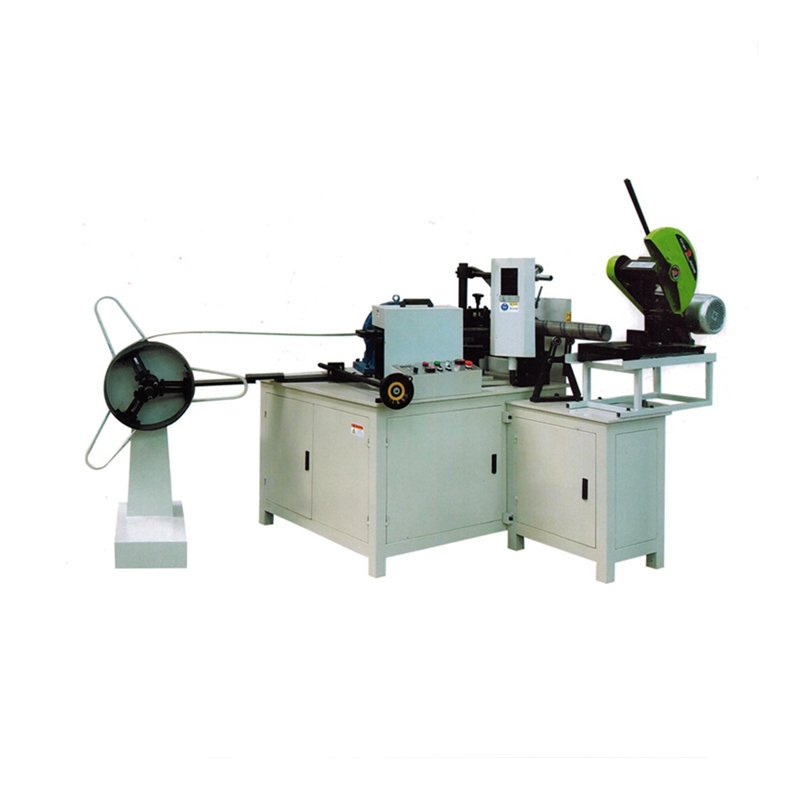

Spiral pipe welding machine

Spiral pipe welding machine: use for make hydraulic filter support frame, inner or outer filter core, oil filter net work.

Filter core use spiral welding pipe machine technical parameters:

strip thickness

1.0-2.5mm

strip width

30-110mm

diameter range

14-150mm

motor power

3.75kw

production speed

0-4m/min

dimension

1500*1200*1250mm

weight

1200kg

mould

saw blade cutting

welding

spiral argon arc welding

current

300A

applicable material

stainless steel, carbon steel

applicable product

various high pressure within the filter support frame,oil complex sand control screen, oil filter net work
