Large air filter center spiral tube rolling machine

Large air filter center or outer use spiral mesh tube rolling machine

material: galvanized steel band and various deep drawing carbon steel band

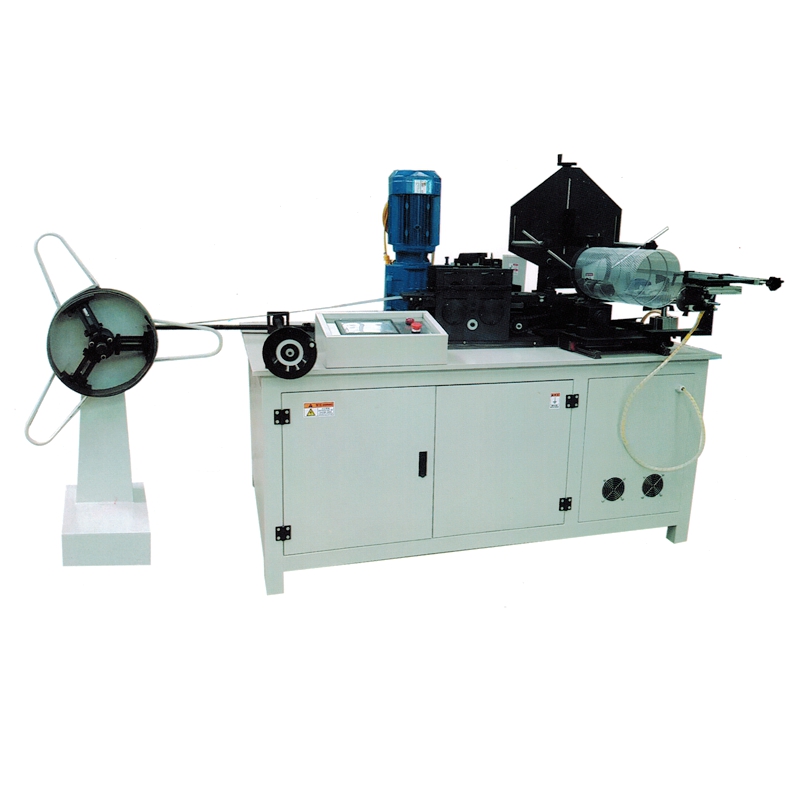

full automatic large filter mesh core rolling machine:

thickness

0.5-0.8mm

strip width

109mm

diameter range

80-400

motor power

2.6kw

production speed

2.6m/min

dimension

1400*1100*1400mm

weight

1000kg

mould

adjustable steel mold diameter range

cutting mode

pneumatic circular blade tracking cut off,continuous non-stop

seams way

inside and outside the flat outer seams

applicable material

galvanized steel band and various deep drawing

applicable product

efficient production of dust filter, air filter and a variety of both interior and exterior filter network, support net work.

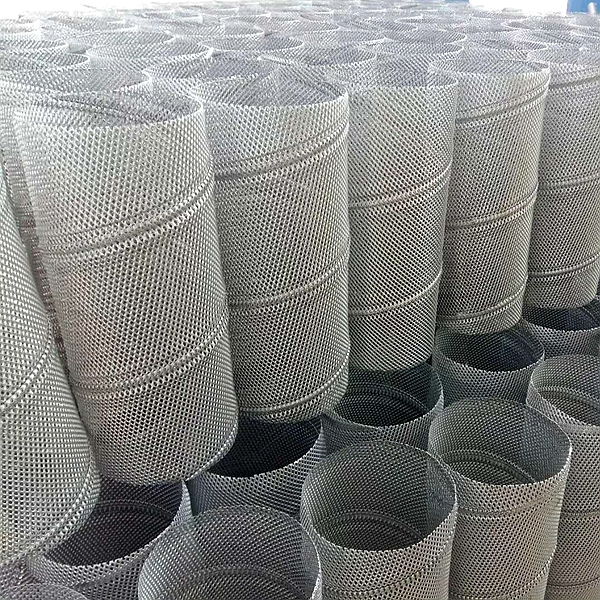

expanded filter core
expansion filter core
expanded filter core
