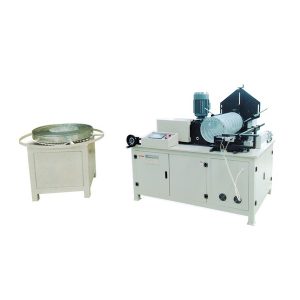

Spiral Expansion Air Filter Core Rolling Machine

filter core rolling machine

Full  automatic expansion air filter core rolling machine

Full automatic expansion spiral air filter core rolling machine


Raw materail:

gi coil or tin plated coil


Advantage of the filter core spiral machine:

1. high speed

2. full automatic

3. PLC control system, easy to operation


Usage:

expansion filter core widly use as  dust filter, air filter and differnt kinds of filter interior and exterior decoration mesh and inner or outer supporting cores.


Expansion spiral air filter core rolling machine technical parameters:

Item

54#

65#

Thickness of strip

0.4-0.6mm

0.4-0.6mm

Strips width

54mm

65mm

Filter Diameter range

Φ80-400mm

Φ120-400mm

Expansion mesh width

109mm

130mm

Speed

0-6m/min

0-6m/min

Seams Way

Inside and outside the flat outer seams

Inside and outside the flat outer seams

Cutting mode

Pneumatic circular blade cutting track continious non-stop

Pneumatic circular blade cutting track continious non-stop

Total Power

4.37 KW

4.37 KW

Weight

1200kg

1200kg

Dimension

L1700mm*W1100mm*H1500mm

L1700mm*W1100mm*H1600mm

Seams way

Pneumatic circular blade cutting track,continuous non-stop

Application Material

Fingerprint resistant sheet, gavanized DX53D+Z board

Applicable product

dust filters, air filters, kinds of interior and exterior mesh filters and supporting mesh etc.
