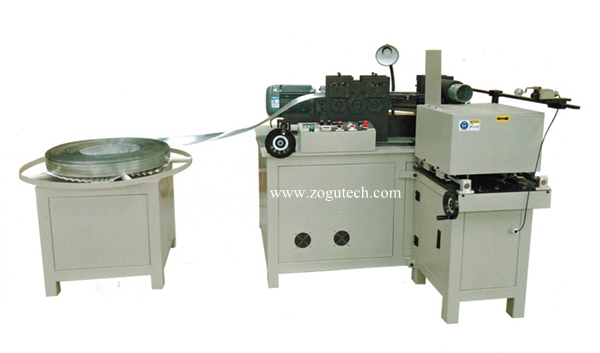

Central tube rolling machine -- for hydraulic filter industrial oil filter
Application material: galvanized steel, tiplate, zinc plating board
Central tube rolling machine technical parameters:
|
strip thickness |
0.4-0.8mm |
|
strip width |
|
|
diameter range |
70-300mm |
|
total power |
7kw |
|
production speed |
0-4m/min |
|
dimension |
2050*1500*1500mm |
|
weight |
1200kg |
|
cutting way |
burr saw blade cutting , continuous non-stop |
|
Seams way |
internal bite, according to requirements seams, walking wire filter inside and outside the support skeleton |
|
applicable material |
galvanized steel, tiplate, zinc plating board |
|
applicable product |

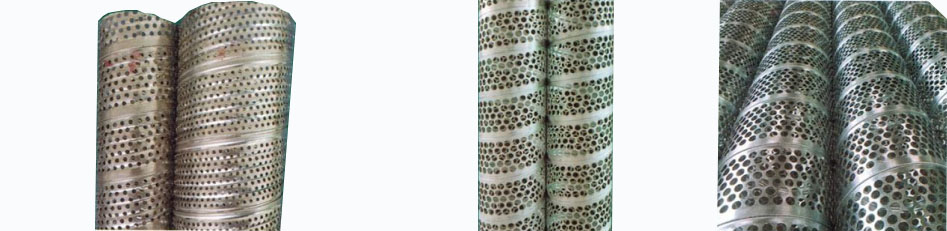

high strength filter center tube, high pressure hydraulic oil network, the net oil filter,dust filter skeleton. |
